MEUK Example (SSP&A)¶
This example demonstrates a complete workflow for tracking particles from a regional water level map using the SSP&A (S.S. Papadopulos & Associates) kriging-based velocity engine. It replicates the MEUK model (Modèle d'Écoulement des eaux souterraines de l'Université de Kinshasa) from the original mod-PATH3DU distribution.
Model Description¶
- Grid: 201×201 structured grid (100 m cells), single layer.
- Hydraulic conductivity: 100 m/d (constant).
- Porosity: 0.3 (constant).
- Heads: Kriged heads loaded from an ASC raster.
- Wells: Three extraction wells loaded from a CSV file.
- Particles: 144 particles starting from locations defined in a shapefile.
- Simulations: Three endpoint simulations at 5044, 23363, and 50000 days.
Running the Examples¶
The scripts for this example are not self-contained downloads. They depend on external model data files (mp3du.gsf, Heads_for_MEUK.asc, MEUK_WELLS.csv, PartStart_Intersect.*) from Examples/Example5a/02-MEUK_Equivalent/ in the mod-PATH3DU repository. The validation workflow also depends on legacy reference shapefiles in Examples/Example5a/Shapefiles/.
To run these scripts, you must execute them from within that directory:
cd Examples/Example5a/02-MEUK_Equivalent/
python meuk_tutorial_smoke_test.py
python meuk_validation_workflow.py
1. Tutorial Script (meuk_tutorial_smoke_test.py)¶
This is a minimal "smoke test" or tutorial script. It runs one particle per release location with no dispersion and no repeats. It focuses purely on the core SSP&A workflow: loading the grid, heads, and wells, fitting the velocity field, running the simulation, and plotting the pathlines. It still requires the external Example 5a input files listed above.
Output¶
The tutorial script writes meuk_tutorial_smoke_test_plot.png to the working
example directory when run locally. The image is not bundled into the published
docs site because it is generated from external Example 5a input files.
Code¶
"""
Minimal smoke test: one particle per release location, no repeats, no dispersion.
Three endpoint times: 5044, 23363, 50000 days.
Prints termination status for every particle and saves a validation plot.
NOTE on fit_sspa performance (353 s for 201x201 grid)
------------------------------------------------------
`fit_sspa` calls `SspaField::new()` which calls `build_neighborhood()` for
every cell via `grid.query_bbox()`. `query_bbox` is a *stub linear scan*
over all 40,401 cells (an R-tree acceleration is noted as a future task in
mp3du-grid/src/grid.rs). That makes the precomputation O(n^2) ≈ 1.6 billion
bbox checks. The actual kriging LDL decompositions are *lazy* (only computed
on the first `velocity_at()` call for each cell), so particles only pay for
cells they visit. Fix: replace the linear scan with a 2-D grid-hash or
R-tree in `build_neighborhood()` in Rust — O(n²) → O(n·k).
"""
import csv
import json
import os
import time
import numpy as np
import shapefile
import mp3du
MODEL_WS = os.path.dirname(os.path.abspath(__file__))
NCOLS = 201
NROWS = 201
CELLSIZE = 100.0
XLLCORNER = 0.0
YLLCORNER = 0.0
HHK = 100.0
POROSITY = 0.3
SEARCH_RADIUS = 300.0
KRIG_OFFSET = 0.1
CAPTURE_RADIUS = 150.0
INITIAL_DT = 0.1
SIMULATIONS = [
{"name": "day05044", "end_time": 5044.0},
{"name": "day23363", "end_time": 23363.0},
{"name": "day50000", "end_time": 50000.0},
]
# ── helpers ──────────────────────────────────────────────────────────
def parse_gsf(path):
with open(path) as f:
lines = f.readlines()
n_verts = int(lines[1].strip())
vertices_xy = {}
for i in range(2, 2 + n_verts):
parts = lines[i].split()
vertices_xy[int(parts[0])] = (float(parts[1]), float(parts[2]))
cells = []
for i in range(2 + n_verts, len(lines)):
line = lines[i].strip()
if not line:
continue
parts = line.split()
nv = int(parts[3])
cells.append({
"id": int(parts[0]),
"cx": float(parts[1]),
"cy": float(parts[2]),
"nvert": nv,
"vert_ids": [int(parts[4 + j]) for j in range(nv)],
"neighbor_ids": [int(parts[4 + nv + j]) for j in range(nv)],
})
return vertices_xy, cells
def read_asc(path):
header = {}
header_lines = 0
with open(path) as f:
for line in f:
parts = line.split()
if len(parts) == 2 and parts[0].upper() in (
"NCOLS", "NROWS", "XLLCORNER", "YLLCORNER", "CELLSIZE", "NODATA_VALUE"
):
header[parts[0].lower()] = (
float(parts[1]) if "." in parts[1] else int(parts[1])
)
header_lines += 1
else:
break
with open(path) as fh:
for _ in range(header_lines):
fh.readline()
tokens = fh.read().split()
nrows = int(header.get("nrows", NROWS))
ncols = int(header.get("ncols", NCOLS))
data = np.array(tokens, dtype=np.float64).reshape(nrows, ncols)
return np.flipud(data)
def read_wells_csv(path):
drifts = []
with open(path, newline="") as f:
for row in csv.DictReader(f):
drifts.append({
"type": "well",
"event": row["EVENT"].strip(),
"term": int(row["TERM"]),
"name": row["NAME"].strip(),
"value": float(row["VAL"]),
"x": float(row["XCOORDS"]),
"y": float(row["YCOORDS"]),
})
return drifts
# ── main ─────────────────────────────────────────────────────────────
def main():
print(f"mp3du version: {mp3du.version()}")
# 1. GSF
print("\nParsing GSF...")
vertices_xy, gsf_cells = parse_gsf(os.path.join(MODEL_WS, "mp3du.gsf"))
n_cells = len(gsf_cells)
print(f" {len(vertices_xy)} vertices, {n_cells} cells")
# 2. Build grid
print("Building grid...")
cell_vertices_list = [
[(vertices_xy[vid][0], vertices_xy[vid][1]) for vid in c["vert_ids"]]
for c in gsf_cells
]
cell_centers_list = [(c["cx"], c["cy"], 0.0) for c in gsf_cells]
grid = mp3du.build_grid(cell_vertices_list, cell_centers_list)
print(f" {grid.n_cells()} cells in grid")
# 3. Heads
print("Reading ASC heads...")
heads_2d = read_asc(os.path.join(MODEL_WS, "Heads_for_MEUK.asc"))
heads_flat = heads_2d.flatten()
print(f" Shape {heads_2d.shape}, range [{heads_flat.min():.4f}, {heads_flat.max():.4f}]")
assert heads_flat.shape[0] == n_cells
# 4. Wells
print("Reading wells...")
drifts = read_wells_csv(os.path.join(MODEL_WS, "MEUK_WELLS.csv"))
for d in drifts:
print(f" {d['name']}: ({d['x']}, {d['y']}), Q={d['value']}")
# 5. Well mask
well_mask = np.zeros(n_cells, dtype=np.bool_)
for d in drifts:
col = min(max(int((d["x"] - XLLCORNER) / CELLSIZE), 0), NCOLS - 1)
row = min(max(int((d["y"] - YLLCORNER) / CELLSIZE), 0), NROWS - 1)
idx = row * NCOLS + col
if 0 <= idx < n_cells:
well_mask[idx] = True
print(f" Well mask: cell {idx} (row={row}, col={col})")
# 6. Fit SSP&A
print("\nHydrating SSP&A inputs...")
sspa_inputs = mp3du.hydrate_sspa_inputs(
heads=heads_flat,
porosity=np.full(n_cells, POROSITY, dtype=np.float64),
well_mask=well_mask,
hhk=np.full(n_cells, HHK, dtype=np.float64),
)
print("Fitting SSP&A field...")
t0 = time.perf_counter()
field = mp3du.fit_sspa(
mp3du.SspaConfig(search_radius=SEARCH_RADIUS, krig_offset=KRIG_OFFSET),
grid,
sspa_inputs,
drifts,
)
print(f" Fitted: {field.method_name()}, {field.n_cells()} cells ({time.perf_counter()-t0:.1f} s)")
# 7. Particles — one per release location, no repeats
print("\nLoading particle starts...")
sf = shapefile.Reader(os.path.join(MODEL_WS, "PartStart_Intersect"))
particles = []
for i, sr in enumerate(sf.iterShapeRecords()):
attrs = sr.record.as_dict()
pt = sr.shape.points[0]
cell_id = attrs["P3D_CellID"] - 1 # 0-based
zloc = attrs.get("ZLOC", 0.5) or 0.5
particles.append(mp3du.ParticleStart(
id=i,
x=pt[0],
y=pt[1],
z=float(zloc),
cell_id=cell_id,
initial_dt=INITIAL_DT,
))
print(f" {len(particles)} particles")
# 8. Simulations
all_trajectories = {} # sim_name -> list of [(x, y), ...] per particle
for sim in SIMULATIONS:
name = sim["name"]
end_time = sim["end_time"]
print(f"\n{'='*55}")
print(f"Simulation: {name} end_time={end_time} d particles={len(particles)}")
print(f"{'='*55}")
config = mp3du.SimulationConfig.from_json(json.dumps({
"velocity_method": "Waterloo",
"solver": "DormandPrince",
"adaptive": {
"tolerance": 1e-6,
"safety": 0.9,
"alpha": 0.2,
"min_scale": 0.2,
"max_scale": 5.0,
"max_rejects": 10,
"min_dt": 1e-10,
"euler_dt": 1e-20,
},
"dispersion": {"method": "None"},
"retardation_enabled": False,
"capture": {
"max_time": end_time,
"max_steps": 2_000_000,
"stagnation_velocity": 1e-12,
"stagnation_limit": 100,
"capture_radius": CAPTURE_RADIUS,
},
"initial_dt": INITIAL_DT,
"max_dt": 1000.0,
"direction": 1.0,
}))
t0 = time.perf_counter()
results = mp3du.run_simulation(config, field, particles, parallel=True)
elapsed = time.perf_counter() - t0
print(f" Done: {len(results)} trajectories ({elapsed:.2f} s)")
# Status summary
status_counts: dict = {}
for r in results:
status_counts[r.final_status] = status_counts.get(r.final_status, 0) + 1
for status, count in sorted(status_counts.items()):
print(f" {status}: {count}")
# Collect full trajectories for plotting
paths = []
for r in results:
recs = r.to_records()
if recs:
paths.append([(rec["x"], rec["y"]) for rec in recs])
all_trajectories[name] = paths
# Print endpoint location for each particle
print(f"\n {'ID':>4} {'status':<22} {'x':>10} {'y':>10} {'z':>7} cell")
print(f" {'-'*4} {'-'*22} {'-'*10} {'-'*10} {'-'*7} ----")
for r in results:
recs = r.to_records()
if recs:
last = recs[-1]
print(f" {r.particle_id:>4} {r.final_status:<22} "
f"{last['x']:>10.1f} {last['y']:>10.1f} "
f"{last.get('z', 0.0):>7.4f} {last['cell_id']}")
else:
print(f" {r.particle_id:>4} {r.final_status:<22} (no records)")
# 9. Plot
_save_plot(heads_2d, particles, drifts, all_trajectories, SIMULATIONS, MODEL_WS)
print("\nDone.")
def _save_plot(heads_2d, particles, drifts, all_trajectories, simulations, out_dir):
"""Contour the head field and overlay particle paths for each simulation."""
try:
import matplotlib.pyplot as plt
import matplotlib.patheffects as pe
except ImportError:
print("matplotlib not available — skipping plot")
return
n_sims = len(simulations)
fig, axes = plt.subplots(1, n_sims, figsize=(7 * n_sims, 7), constrained_layout=True)
if n_sims == 1:
axes = [axes]
# Coordinate arrays (row 0 of heads_2d = south after flipud)
x_centres = XLLCORNER + (np.arange(NCOLS) + 0.5) * CELLSIZE
y_centres = YLLCORNER + (np.arange(NROWS) + 0.5) * CELLSIZE
X, Y = np.meshgrid(x_centres, y_centres)
# Colour map range for heads
h_min, h_max = heads_2d.min(), heads_2d.max()
levels_fill = np.linspace(h_min, h_max, 40)
levels_line = np.linspace(h_min, h_max, 12)
# Start points
starts_x = [p.x for p in particles]
starts_y = [p.y for p in particles]
# Well locations
well_x = [d["x"] for d in drifts]
well_y = [d["y"] for d in drifts]
well_names = [d["name"] for d in drifts]
sim_colors = ["steelblue", "darkorange", "crimson"]
for ax, sim, color in zip(axes, simulations, sim_colors):
name = sim["name"]
end_time = sim["end_time"]
# Filled head contours
cf = ax.contourf(X, Y, heads_2d, levels=levels_fill, cmap="Blues_r", alpha=0.7)
cs = ax.contour(X, Y, heads_2d, levels=levels_line, colors="k",
linewidths=0.4, alpha=0.5)
ax.clabel(cs, fmt="%.1f", fontsize=6, inline=True)
fig.colorbar(cf, ax=ax, label="Head (m)", shrink=0.8)
# Particle paths
paths = all_trajectories.get(name, [])
for i, path in enumerate(paths):
if not path:
continue
xs = [pt[0] for pt in path]
ys = [pt[1] for pt in path]
ax.plot(xs, ys, color=color, lw=0.6, alpha=0.5)
# Arrow at midpoint to show direction
mid = len(path) // 2
if len(path) >= 2:
ax.annotate(
"",
xy=path[mid],
xytext=path[max(mid - 1, 0)],
arrowprops=dict(arrowstyle="->", color=color, lw=0.8),
)
# Particle starts
ax.scatter(starts_x, starts_y, s=6, c="lime", zorder=5,
label="Particle start", edgecolors="k", linewidths=0.3)
# Well locations
ax.scatter(well_x, well_y, s=120, marker="v", c="red", zorder=6,
label="Well", edgecolors="black", linewidths=0.8)
for wx, wy, wn in zip(well_x, well_y, well_names):
ax.annotate(wn, (wx, wy), textcoords="offset points",
xytext=(5, 5), fontsize=7, color="red",
path_effects=[pe.withStroke(linewidth=1.5, foreground="white")])
ax.set_xlim(XLLCORNER, XLLCORNER + NCOLS * CELLSIZE)
ax.set_ylim(YLLCORNER, YLLCORNER + NROWS * CELLSIZE)
ax.set_aspect("equal")
ax.set_title(f"{name} (t = {end_time:,.0f} d)", fontsize=10)
ax.set_xlabel("X (m)")
ax.set_ylabel("Y (m)")
ax.legend(loc="upper left", fontsize=7, markerscale=1.5)

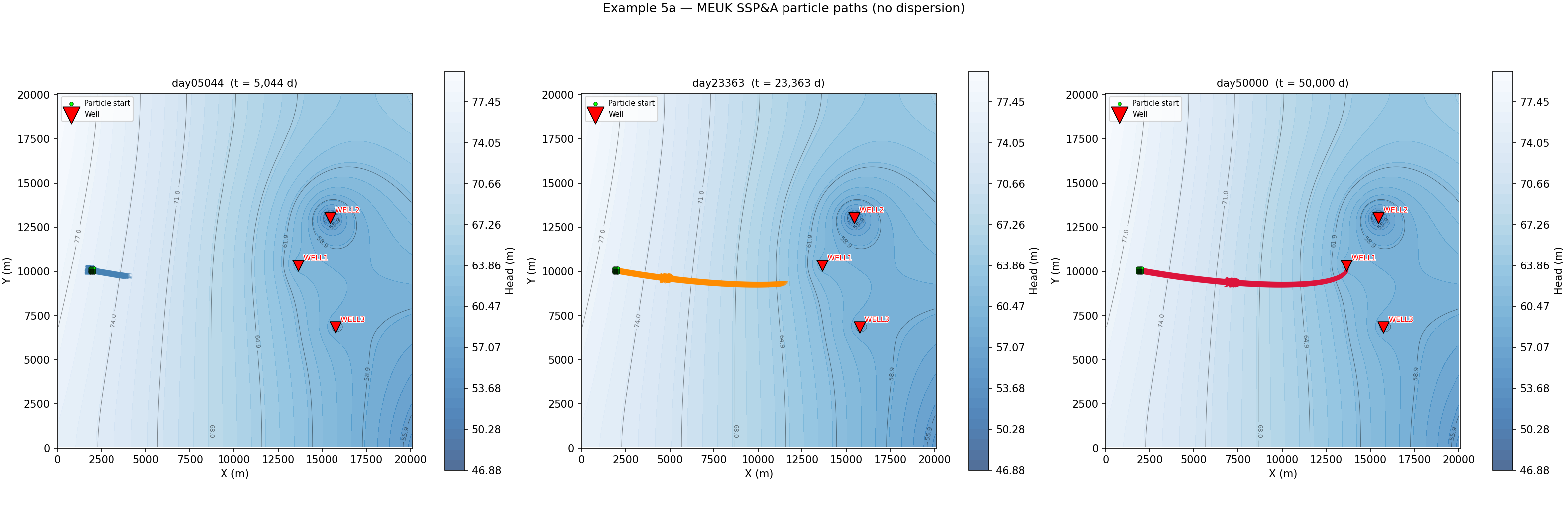

fig.suptitle("Example 5a — MEUK SSP&A particle paths (no dispersion)", fontsize=12)
out_path = os.path.join(out_dir, "meuk_tutorial_smoke_test_plot.png")
fig.savefig(out_path, dpi=150)
plt.close(fig)
print(f"\nPlot saved: {out_path}")
if __name__ == "__main__":
main()
2. Validation Script (meuk_validation_workflow.py)¶
This is a full validation script. It includes dispersion, runs Monte Carlo repeats (e.g., 100 to 5000 times per particle), bins the endpoints into a concentration grid, loads the legacy C++ reference shapefiles, and computes quantitative validation metrics (Pearson correlation, normalized RMSE, mass error) to prove the Rust engine matches the legacy C++ engine. Besides the Example 5a input files, it also requires the reference shapefiles from Examples/Example5a/Shapefiles/.
Output¶

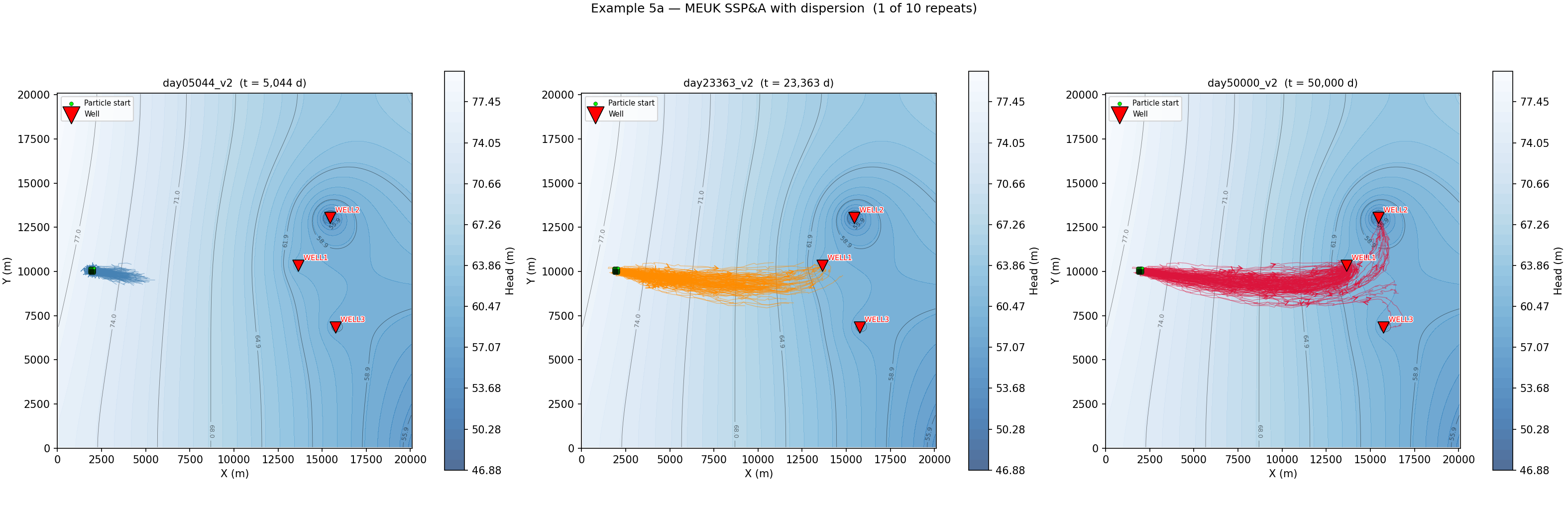

The validation script writes meuk_validation_workflow_head_plot.png to the
working example directory when run locally. The image is not bundled into the
published docs site because it is generated from external Example 5a input files
and legacy reference shapefiles.
Code¶
"""
Run mp3du-rs (Rust) SSP&A particle tracking on Example 5a — MEUK Equivalent.
This script validates the Rust SSP&A (kriging-based) velocity engine against
the legacy C++ MEUK outputs. It uses the same model inputs as the C++ run:
- 201×201 structured grid (100 m cells), single layer.
- Hydraulic conductivity = 100 m/d (constant).
- Porosity = 0.3 (constant).
- Kriged heads from an ASC raster (reversed row order to match C++).
- Three extraction wells read from MEUK_WELLS.csv.
- 144 particles from PartStart_Intersect.shp, repeated N times.
- Three endpoint simulations at 5044, 23363, and 50000 days.
Validation compares Rust endpoint concentrations against C++ reference
shapefiles (MEUK_05044.shp, MEUK_23363.shp, MEUK_50000.shp) using Pearson
correlation, normalized RMSE, and captured-mass error.
Input files (all in this directory):
mp3du.gsf Grid geometry (mod-PATH3DU v1.1.0 GSF format)
Heads_for_MEUK.asc Kriged steady-state heads (201×201)
MEUK_WELLS.csv Three extraction wells (NAME, X, Y, TERM, EVENT, VAL)
PartStart_Intersect.shp 144 particle starting locations
Reference files (in ../Shapefiles/):
MEUK_05044.shp C++ concentration grid at t=5044 d
MEUK_23363.shp C++ concentration grid at t=23363 d
MEUK_50000.shp C++ concentration grid at t=50000 d
Requirements:
Python packages: numpy, pyshp (shapefile), matplotlib
Native package: mp3du (built via ``maturin develop --release``)
"""
import csv
import json
import os
import sys
import time
import numpy as np
import shapefile
import mp3du
# ── Configuration ─────────────────────────────────────────────────────
MODEL_WS = os.path.dirname(os.path.abspath(__file__))
SHAPEFILE_DIR = os.path.join(os.path.dirname(MODEL_WS), "Shapefiles")
# Grid constants (from Ex4_MEUK.json / gsf.json)
NCOLS = 201
NROWS = 201
CELLSIZE = 100.0
XLLCORNER = 0.0
YLLCORNER = 0.0
# Model constants
HHK = 100.0 # hydraulic conductivity (m/d)
POROSITY = 0.3 # effective porosity
RETARDATION = 1.0
SEARCH_RADIUS = 300.0 # kriging neighbourhood radius (m)
KRIG_OFFSET = 0.1 # finite-difference offset for kriging velocity
# Dispersion parameters (from Ex4_MEUK.json)
DISP_LONGITUDINAL = 100.0 # m
DISP_TRANSVERSE_H = 10.0 # m
# Simulation configurations (from Ex4_MEUK.json)
SIMULATIONS = [
{"name": "day05044_v2", "end_time": 5044.0, "ref_shp": "MEUK_05044"},
{"name": "day23363_v2", "end_time": 23363.0, "ref_shp": "MEUK_23363"},
{"name": "day50000_v2", "end_time": 50000.0, "ref_shp": "MEUK_50000"},
]
CAPTURE_RADIUS = 150.0 # well capture radius (m) — matches C++
INITIAL_DT = 0.1 # days
ADAPTIVE_TOL = 1.0e-6
# Number of repeat realizations. Start small (100) for fast validation;
# scale to 5000 to match the full C++ run.
N_REPEATS = int(os.environ.get("MP3DU_REPEATS", "100"))
# ──────────────────────────────────────────────────────────────────────
# 1. Parse the GSF file (grid geometry)
# ──────────────────────────────────────────────────────────────────────
def parse_gsf(path):
"""Parse a mod-PATH3DU v1.1.0 GSF file.
Returns
-------
vertices_xy : dict[int, (float, float)]
Vertex ID -> (x, y)
cells : list[dict]
Each dict: id, cx, cy, nvert, vert_ids, neighbor_ids
"""
with open(path) as f:
lines = f.readlines()
_version = lines[0].strip()
n_verts = int(lines[1].strip())
vertices_xy = {}
for i in range(2, 2 + n_verts):
parts = lines[i].split()
vid = int(parts[0])
vx, vy = float(parts[1]), float(parts[2])
vertices_xy[vid] = (vx, vy)
cells = []
for i in range(2 + n_verts, len(lines)):
line = lines[i].strip()
if not line:
continue
parts = line.split()
cell_id = int(parts[0])
cx, cy = float(parts[1]), float(parts[2])
nv = int(parts[3])
vert_ids = [int(parts[4 + j]) for j in range(nv)]
neighbor_ids = [int(parts[4 + nv + j]) for j in range(nv)]
cells.append({
"id": cell_id,
"cx": cx,
"cy": cy,
"nvert": nv,
"vert_ids": vert_ids,
"neighbor_ids": neighbor_ids,
})
return vertices_xy, cells
# ──────────────────────────────────────────────────────────────────────
# 2. Read and reverse the ASC heads raster
#
# The ASC format stores rows top-to-bottom (north to south).
# The C++ loader reads rows in reverse: for(i=nrow-1; i>=0; i--)
# so row 0 in the resulting array corresponds to the BOTTOM of the grid.
# We replicate this with np.flipud().
# ──────────────────────────────────────────────────────────────────────
def read_asc(path):
"""Read an ASC raster and reverse row order to match C++ semantics.
Returns
-------
data : np.ndarray, shape (nrows, ncols)
Row 0 = bottom (south), row nrows-1 = top (north).
header : dict
ncols, nrows, xllcorner, yllcorner, cellsize, nodata_value
"""
header = {}
header_lines = 0
with open(path) as f:
for line in f:
parts = line.split()
if len(parts) == 2 and parts[0].upper() in (
"NCOLS", "NROWS", "XLLCORNER", "YLLCORNER",
"CELLSIZE", "NODATA_VALUE",
):
key = parts[0].lower()
header[key] = float(parts[1]) if "." in parts[1] else int(parts[1])
header_lines += 1
else:
break
# ASC files may have varying numbers of values per line (not a fixed
# rectangular text table), so we read all tokens and reshape.
with open(path) as fh:
for _ in range(header_lines):
fh.readline()
tokens = fh.read().split()
nrows = int(header.get("nrows", NROWS))
ncols = int(header.get("ncols", NCOLS))
data = np.array(tokens, dtype=np.float64).reshape(nrows, ncols)
# Reverse row order: C++ reads bottom-to-top
data = np.flipud(data)
return data, header
# ──────────────────────────────────────────────────────────────────────
# 3. Parse well drift data from CSV
# ──────────────────────────────────────────────────────────────────────
def read_wells_csv(path):
"""Read MEUK_WELLS.csv and return drift dictionaries for fit_sspa.
Returns
-------
drifts : list[dict]
Each dict has keys: type, event, term, name, value, x, y
"""
drifts = []
with open(path, newline="") as f:
reader = csv.DictReader(f)
for row in reader:
drifts.append({
"type": "well",
"event": row["EVENT"].strip(),
"term": int(row["TERM"]),
"name": row["NAME"].strip(),
"value": float(row["VAL"]),
"x": float(row["XCOORDS"]),
"y": float(row["YCOORDS"]),
})
return drifts
# ──────────────────────────────────────────────────────────────────────
# 4. Load reference concentrations from C++ shapefile
# ──────────────────────────────────────────────────────────────────────
def load_reference_concentration(shp_basename):
"""Load reference concentration grid from a MEUK_*.shp file.
Returns
-------
conc : np.ndarray, shape (nrows * ncols,)
Concentration per cell in row-major order (row 1 col 1 first).
"""
sf = shapefile.Reader(shp_basename)
n = len(sf)
conc = np.zeros(n, dtype=np.float64)
for i, rec in enumerate(sf.iterRecords()):
conc[i] = rec["concentrat"]
return conc
# ──────────────────────────────────────────────────────────────────────
# 5. Build cell-to-grid mapping for endpoint binning
#
# The GSF cells are ordered row-major for a structured grid, but we
# use the cell centroid coordinates to map cell IDs to (row, col) in
# the 201×201 grid. This uses grid lookup semantics rather than direct
# row/column arithmetic from endpoint coordinates.
# ──────────────────────────────────────────────────────────────────────
def build_cell_to_rc(gsf_cells):
"""Map each GSF cell index (0-based) to (row, col) in the grid.
Uses the grid coordinate system:
col = floor((cx - xll) / cellsize)
row = floor((cy - yll) / cellsize)
where (cx, cy) is the cell centroid from the GSF. This keeps the
mapping consistent with the grid's spatial index.
Returns
-------
cell_row : np.ndarray of int, shape (n_cells,)
cell_col : np.ndarray of int, shape (n_cells,)
"""
n = len(gsf_cells)
cell_row = np.zeros(n, dtype=np.int32)
cell_col = np.zeros(n, dtype=np.int32)
for ci, cell in enumerate(gsf_cells):
cx, cy = cell["cx"], cell["cy"]
c = int((cx - XLLCORNER) / CELLSIZE)
r = int((cy - YLLCORNER) / CELLSIZE)
cell_col[ci] = min(c, NCOLS - 1)
cell_row[ci] = min(r, NROWS - 1)
return cell_row, cell_col
# ──────────────────────────────────────────────────────────────────────
# 6. Bin endpoints into a concentration grid using cell IDs
#
# The tracker reports the cell_id each particle ends in. We use the
# GSF cell→(row,col) mapping (grid lookup semantics) to bin endpoints
# into a 201×201 concentration grid, rather than computing row/col
# from the endpoint (x, y) coordinates directly.
# ──────────────────────────────────────────────────────────────────────
def bin_endpoints(results, cell_row, cell_col, n_cells):
"""Bin simulation endpoints into a per-cell concentration array.
Uses the cell_id from the last trajectory record (the endpoint)
and maps it to a grid cell via the pre-built cell→(row,col) table.
Parameters
----------
results : list of TrajectoryResult
cell_row, cell_col : arrays from build_cell_to_rc
n_cells : total number of cells
Returns
-------
conc : np.ndarray, shape (n_cells,)
Count of endpoints per cell.
"""
conc = np.zeros(n_cells, dtype=np.float64)
for r in results:
records = r.to_records()
if not records:
continue
last = records[-1]
cid = last["cell_id"]
if 0 <= cid < n_cells:
conc[cid] += 1.0
return conc
# ──────────────────────────────────────────────────────────────────────
# 7. Validation metrics
# ──────────────────────────────────────────────────────────────────────
def compute_metrics(rust_conc, ref_conc):
"""Compute comparison metrics between two concentration arrays.
Returns
-------
dict with keys:
pearson_r – Pearson correlation coefficient
nrmse – Normalized RMSE (relative to reference range)
mass_error_pct – Captured-mass error as a percentage
rust_total – Total concentration (Rust)
ref_total – Total concentration (reference)
"""
metrics = {}
ref_total = ref_conc.sum()
rust_total = rust_conc.sum()
metrics["ref_total"] = ref_total
metrics["rust_total"] = rust_total
if ref_total > 0:
metrics["mass_error_pct"] = 100.0 * (rust_total - ref_total) / ref_total
else:
metrics["mass_error_pct"] = 0.0
# Pearson correlation
mask = (ref_conc > 0) | (rust_conc > 0)
if mask.sum() > 1:
r_ref = ref_conc[mask]
r_rust = rust_conc[mask]
if r_ref.std() > 0 and r_rust.std() > 0:
metrics["pearson_r"] = float(np.corrcoef(r_ref, r_rust)[0, 1])
else:
metrics["pearson_r"] = float("nan")
else:
metrics["pearson_r"] = float("nan")
# Normalized RMSE
ref_range = ref_conc.max() - ref_conc.min()
rmse = np.sqrt(np.mean((rust_conc - ref_conc) ** 2))
if ref_range > 0:
metrics["nrmse"] = float(rmse / ref_range)
else:
metrics["nrmse"] = float(rmse)
return metrics
# ══════════════════════════════════════════════════════════════════════
# PLOTS
# ══════════════════════════════════════════════════════════════════════
def _save_head_plot(heads_2d, base_particles, drifts, all_trajectories, simulations, out_dir):
"""Head-contour + particle-path overlay for each simulation.
Only the first repeat's trajectories are plotted so the figure stays
readable when N_REPEATS is large.
"""
try:
import matplotlib.pyplot as plt
import matplotlib.patheffects as pe
except ImportError:
print("matplotlib not available — skipping head-contour plot")
return
n_sims = len(simulations)
fig, axes = plt.subplots(1, n_sims, figsize=(7 * n_sims, 7), constrained_layout=True)
if n_sims == 1:
axes = [axes]
x_centres = XLLCORNER + (np.arange(NCOLS) + 0.5) * CELLSIZE
y_centres = YLLCORNER + (np.arange(NROWS) + 0.5) * CELLSIZE
X, Y = np.meshgrid(x_centres, y_centres)
h_min, h_max = heads_2d.min(), heads_2d.max()
levels_fill = np.linspace(h_min, h_max, 40)
levels_line = np.linspace(h_min, h_max, 12)
starts_x = [bp["x"] for bp in base_particles]
starts_y = [bp["y"] for bp in base_particles]
well_x = [d["x"] for d in drifts]
well_y = [d["y"] for d in drifts]
well_names = [d["name"] for d in drifts]
sim_colors = ["steelblue", "darkorange", "crimson"]
for ax, sim, color in zip(axes, simulations, sim_colors):
name = sim["name"]
end_time = sim["end_time"]
cf = ax.contourf(X, Y, heads_2d, levels=levels_fill, cmap="Blues_r", alpha=0.7)
cs = ax.contour(X, Y, heads_2d, levels=levels_line, colors="k",
linewidths=0.4, alpha=0.5)
ax.clabel(cs, fmt="%.1f", fontsize=6, inline=True)
fig.colorbar(cf, ax=ax, label="Head (m)", shrink=0.8)
for path in all_trajectories.get(name, []):
if not path:
continue
xs = [pt[0] for pt in path]
ys = [pt[1] for pt in path]
ax.plot(xs, ys, color=color, lw=0.6, alpha=0.5)
mid = len(path) // 2
if len(path) >= 2:
ax.annotate("", xy=path[mid], xytext=path[max(mid - 1, 0)],
arrowprops=dict(arrowstyle="->", color=color, lw=0.8))
ax.scatter(starts_x, starts_y, s=6, c="lime", zorder=5,
label="Particle start", edgecolors="k", linewidths=0.3)
ax.scatter(well_x, well_y, s=120, marker="v", c="red", zorder=6,
label="Well", edgecolors="black", linewidths=0.8)
for wx, wy, wn in zip(well_x, well_y, well_names):
ax.annotate(wn, (wx, wy), textcoords="offset points",
xytext=(5, 5), fontsize=7, color="red",
path_effects=[pe.withStroke(linewidth=1.5, foreground="white")])
ax.set_xlim(XLLCORNER, XLLCORNER + NCOLS * CELLSIZE)
ax.set_ylim(YLLCORNER, YLLCORNER + NROWS * CELLSIZE)
ax.set_aspect("equal")
ax.set_title(f"{name} (t = {end_time:,.0f} d)", fontsize=10)
ax.set_xlabel("X (m)")
ax.set_ylabel("Y (m)")
ax.legend(loc="upper left", fontsize=7, markerscale=1.5)
fig.suptitle(f"Example 5a — MEUK SSP&A with dispersion (1 of {N_REPEATS} repeats)",
fontsize=12)
out_path = os.path.join(out_dir, "meuk_validation_workflow_head_plot.png")
fig.savefig(out_path, dpi=150)
plt.close(fig)
print(f" Head-contour plot saved: {out_path}")
# ══════════════════════════════════════════════════════════════════════
# MAIN
# ══════════════════════════════════════════════════════════════════════
def main():
print(f"mp3du-rs version: {mp3du.version()}")
print(f"Repeat count: {N_REPEATS} (set MP3DU_REPEATS=5000 for full run)")
print()
# ── 1. Parse GSF ──────────────────────────────────────────────────
gsf_path = os.path.join(MODEL_WS, "mp3du.gsf")
print("Parsing GSF file...")
vertices_xy, gsf_cells = parse_gsf(gsf_path)
n_cells = len(gsf_cells)
print(f" {len(vertices_xy)} vertices, {n_cells} cells")
# ── 2. Build mp3du grid ───────────────────────────────────────────
print("Building grid...")
cell_vertices_list = []
cell_centers_list = []
for cell in gsf_cells:
verts = [
(vertices_xy[vid][0], vertices_xy[vid][1])
for vid in cell["vert_ids"]
]
cell_vertices_list.append(verts)
# z-center is arbitrary for the 2-D MEUK model; use 0.
cell_centers_list.append((cell["cx"], cell["cy"], 0.0))
grid = mp3du.build_grid(cell_vertices_list, cell_centers_list)
print(f" Grid built: {grid.n_cells()} cells")
# ── 3. Read ASC heads (reversed row order) ────────────────────────
asc_path = os.path.join(MODEL_WS, "Heads_for_MEUK.asc")
print("Reading ASC heads (with row reversal)...")
heads_2d, _hdr = read_asc(asc_path)
print(f" Shape: {heads_2d.shape} Range: [{heads_2d.min():.4f}, {heads_2d.max():.4f}]")
# Flatten heads to 1-D in row-major order matching GSF cell ordering.
# After flipud, row 0 is the bottom row of the grid.
# GSF cell ordering: cell 0 is at (cx=50, cy=50) which is row 0 col 0
# (bottom-left of the grid). This matches the flipped ASC layout.
heads_flat = heads_2d.flatten()
assert heads_flat.shape[0] == n_cells, (
f"Heads count {heads_flat.shape[0]} != GSF cells {n_cells}"
)
# ── 4. Read well drifts ───────────────────────────────────────────
wells_path = os.path.join(MODEL_WS, "MEUK_WELLS.csv")
print("Reading well drifts...")
drifts = read_wells_csv(wells_path)
for d in drifts:
print(f" {d['name']}: ({d['x']}, {d['y']}), Q={d['value']}, "
f"event={d['event']}, term={d['term']}")
# ── 5. Build well mask ────────────────────────────────────────────
# Mark cells that contain a well so kriging excludes them.
well_mask = np.zeros(n_cells, dtype=np.bool_)
for d in drifts:
# Find the cell whose centroid is closest to the well
wx, wy = d["x"], d["y"]
col = int((wx - XLLCORNER) / CELLSIZE)
row = int((wy - YLLCORNER) / CELLSIZE)
col = min(max(col, 0), NCOLS - 1)
row = min(max(row, 0), NROWS - 1)
idx = row * NCOLS + col
if 0 <= idx < n_cells:
well_mask[idx] = True
print(f" Well mask set at cell {idx} (row={row}, col={col})")
# ── 6. Hydrate SSP&A inputs and fit the field ─────────────────────
print("Hydrating SSP&A inputs...")
sspa_inputs = mp3du.hydrate_sspa_inputs(
heads=heads_flat,
porosity=np.full(n_cells, POROSITY, dtype=np.float64),
well_mask=well_mask,
hhk=np.full(n_cells, HHK, dtype=np.float64),
)
print("Fitting SSP&A velocity field...")
sspa_cfg = mp3du.SspaConfig(
search_radius=SEARCH_RADIUS,
krig_offset=KRIG_OFFSET,
)
t0 = time.perf_counter()
field = mp3du.fit_sspa(sspa_cfg, grid, sspa_inputs, drifts)
dt_fit = time.perf_counter() - t0
print(f" Field fitted: {field.method_name()}, {field.n_cells()} cells ({dt_fit:.2f} s)")
# ── 7. Load particle starting positions ───────────────────────────
shp_path = os.path.join(MODEL_WS, "PartStart_Intersect")
print("Loading particle start locations...")
sf = shapefile.Reader(shp_path)
base_particles = []
for i, sr in enumerate(sf.iterShapeRecords()):
attrs = sr.record.as_dict()
pt = sr.shape.points[0]
cell_id_1based = attrs["P3D_CellID"]
cell_id = cell_id_1based - 1 # 0-based
zloc = attrs.get("ZLOC", 0.5) or 0.5
base_particles.append({
"x": pt[0],
"y": pt[1],
"z": zloc,
"cell_id": cell_id,
})
print(f" {len(base_particles)} base particles loaded")
# ── 8. Build cell→(row,col) mapping for endpoint binning ─────────
cell_row, cell_col = build_cell_to_rc(gsf_cells)
# ── 9. Run simulations ────────────────────────────────────────────
# Build particles with REPEAT realizations (each base particle is
# replicated N_REPEATS times with unique IDs).
all_metrics = {}
all_results = {} # sim_name -> list[TrajectoryResult]
all_trajectories = {} # sim_name -> list of [(x,y),...] for first repeat
for sim in SIMULATIONS:
sim_name = sim["name"]
end_time = sim["end_time"]
ref_shp = sim["ref_shp"]
print(f"\n{'='*60}")
print(f"Simulation: {sim_name} (t_end = {end_time} d, repeats = {N_REPEATS})")
print(f"{'='*60}")
# Build simulation config
config_dict = {
"velocity_method": "Waterloo",
"solver": "DormandPrince",
"adaptive": {
"tolerance": ADAPTIVE_TOL,
"safety": 0.9,
"alpha": 0.2,
"min_scale": 0.2,
"max_scale": 5.0,
"max_rejects": 10,
"min_dt": 1e-10,
"euler_dt": 1e-20,
},
"dispersion": {
"method": "Ito",
"alpha_l": DISP_LONGITUDINAL,
"alpha_th": DISP_TRANSVERSE_H,
"alpha_tv": 0.0,
},
"retardation_enabled": RETARDATION != 1.0,
"capture": {
"max_time": end_time,
"max_steps": 2_000_000,
"stagnation_velocity": 1e-12,
"stagnation_limit": 100,
"capture_radius": CAPTURE_RADIUS,
},
"initial_dt": INITIAL_DT,
"max_dt": 1000.0,
"direction": 1.0,
}
config = mp3du.SimulationConfig.from_json(json.dumps(config_dict))
# Build repeated particle list
particles = []
pid = 0
for _rep in range(N_REPEATS):
for bp in base_particles:
particles.append(mp3du.ParticleStart(
id=pid,
x=bp["x"],
y=bp["y"],
z=bp["z"],
cell_id=bp["cell_id"],
initial_dt=INITIAL_DT,
))
pid += 1
total_particles = len(particles)
print(f" Total particles: {total_particles} "
f"({len(base_particles)} base × {N_REPEATS} repeats)")
# Run
t0 = time.perf_counter()
results = mp3du.run_simulation(config, field, particles, parallel=True)
dt_sim = time.perf_counter() - t0
print(f" Simulation complete: {len(results)} trajectories ({dt_sim:.1f} s)")
all_results[sim_name] = results
# Collect particle paths for first repeat only (for head-contour plot)
n_base = len(base_particles)
paths = []
for r in results[:n_base]:
recs = r.to_records()
if recs:
paths.append([(rec["x"], rec["y"]) for rec in recs])
all_trajectories[sim_name] = paths
# Summarise termination statuses
status_counts = {}
for r in results:
status_counts[r.final_status] = status_counts.get(r.final_status, 0) + 1
for status, count in sorted(status_counts.items()):
print(f" {status}: {count}")
# Bin endpoints into concentration grid
rust_conc = bin_endpoints(results, cell_row, cell_col, n_cells)
print(f" Non-zero cells (Rust): {(rust_conc > 0).sum()}")
# Load reference
ref_path = os.path.join(SHAPEFILE_DIR, ref_shp)
if os.path.exists(ref_path + ".shp"):
print(f" Loading reference: {ref_shp}.shp")
ref_conc = load_reference_concentration(ref_path)
# The reference shapefile stores cells in row-major order with
# row 1 = top of grid. The GSF cell-index ordering has row 0 =
# bottom. We need to remap the reference to match GSF order.
# Reference: row i, col j -> flat index (i-1)*ncols + (j-1)
# where row 1 is the TOP (north). GSF: row 0 is BOTTOM (south).
# So reference row r (1-based top) maps to GSF row (nrows - r).
ref_reordered = np.zeros(n_cells, dtype=np.float64)
for i in range(NROWS):
for j in range(NCOLS):
# Reference flat index: row i (0-based from top), col j
ref_idx = i * NCOLS + j
# GSF row = (NROWS - 1 - i), col = j -> GSF flat index
gsf_idx = (NROWS - 1 - i) * NCOLS + j
ref_reordered[gsf_idx] = ref_conc[ref_idx]
# Scale Rust concentration to match reference particle count
# (reference used 5000 repeats × 144 particles)
if N_REPEATS != 5000:
scale = 5000.0 / N_REPEATS
rust_conc_scaled = rust_conc * scale
print(f" Scaling Rust concentrations by {scale:.1f}x "
f"(normalising {N_REPEATS} -> 5000 repeats)")
else:
rust_conc_scaled = rust_conc
metrics = compute_metrics(rust_conc_scaled, ref_reordered)
all_metrics[sim_name] = metrics
print(f"\n Validation metrics vs C++ reference:")
print(f" Pearson r: {metrics['pearson_r']:.4f}")
print(f" Norm. RMSE: {metrics['nrmse']:.4f}")
print(f" Mass error: {metrics['mass_error_pct']:+.2f}%")
print(f" Total (Rust): {metrics['rust_total']:.1f}")
print(f" Total (C++): {metrics['ref_total']:.1f}")
else:
print(f" WARNING: Reference shapefile not found: {ref_path}.shp")
print(f" Skipping validation for {sim_name}")
# ── 10. Summary ───────────────────────────────────────────────────
print(f"\n{'='*60}")
print("VALIDATION SUMMARY")
print(f"{'='*60}")
print(f"Repeats: {N_REPEATS} (set MP3DU_REPEATS=5000 for full run)")
for name, m in all_metrics.items():
print(f" {name}: r={m['pearson_r']:.4f} nRMSE={m['nrmse']:.4f} "
f"mass_err={m['mass_error_pct']:+.2f}%")
# ── 11. Head-contour + particle-path overlay plot ─────────────────
_save_head_plot(heads_2d, base_particles, drifts, all_trajectories, SIMULATIONS, MODEL_WS)
# ── 12. Optional: reference comparison plots ─────────────────────
try:
import matplotlib.pyplot as plt
for sim in SIMULATIONS:
sim_name = sim["name"]
ref_shp = sim["ref_shp"]
ref_path = os.path.join(SHAPEFILE_DIR, ref_shp)
if not os.path.exists(ref_path + ".shp"):
continue
if sim_name not in all_metrics:
continue
ref_conc = load_reference_concentration(ref_path)
# Reorder reference to GSF order
ref_grid = np.zeros((NROWS, NCOLS), dtype=np.float64)
for i in range(NROWS):
for j in range(NCOLS):
ref_idx = i * NCOLS + j
ref_grid[NROWS - 1 - i, j] = ref_conc[ref_idx]
# Re-derive the 2-D concentration grids for plotting
rust_flat = bin_endpoints(all_results[sim_name], cell_row, cell_col, n_cells)
if N_REPEATS != 5000:
rust_flat = rust_flat * (5000.0 / N_REPEATS)
rust_grid = rust_flat.reshape(NROWS, NCOLS)
fig, axes = plt.subplots(1, 3, figsize=(18, 5))
extent = [XLLCORNER, XLLCORNER + NCOLS * CELLSIZE,
YLLCORNER, YLLCORNER + NROWS * CELLSIZE]
vmax = max(ref_grid.max(), rust_grid.max(), 1.0)
axes[0].imshow(ref_grid, origin="lower", extent=extent,
vmin=0, vmax=vmax, cmap="hot_r")
axes[0].set_title(f"C++ Reference ({ref_shp})")
axes[1].imshow(rust_grid, origin="lower", extent=extent,
vmin=0, vmax=vmax, cmap="hot_r")
axes[1].set_title(f"Rust SSP&A (×{N_REPEATS})")
diff = rust_grid - ref_grid
dmax = max(abs(diff.min()), abs(diff.max()), 1.0)
im = axes[2].imshow(diff, origin="lower", extent=extent,
vmin=-dmax, vmax=dmax, cmap="RdBu_r")
axes[2].set_title("Difference (Rust − C++)")
fig.colorbar(im, ax=axes[2], shrink=0.8)
for ax in axes:
ax.set_xlabel("X (m)")
ax.set_ylabel("Y (m)")
fig.suptitle(f"Example 5a — {sim_name} "
f"(r={all_metrics[sim_name]['pearson_r']:.3f})")
fig.tight_layout()
plot_path = os.path.join(MODEL_WS, f"validation_{sim_name}.png")
fig.savefig(plot_path, dpi=150)
plt.close(fig)
print(f" Plot saved: {plot_path}")
except ImportError:
print(" matplotlib not available — skipping plots")
print("\nDone.")
if __name__ == "__main__":
main()
What to Do After the Script Runs¶
Quick Health Check¶
After either script finishes, run this diagnostic snippet to understand what happened:
from collections import Counter
status_counts = Counter(r.final_status for r in results)
print("=== Particle Status Summary ===")
for status, count in status_counts.most_common():
print(f" {status}: {count}")
# Check if any particles actually moved
for res in results[:3]: # inspect first 3
recs = res.to_records()
if recs:
first, last = recs[0], recs[-1]
dist = ((last["x"] - first["x"])**2 + (last["y"] - first["y"])**2)**0.5
print(f" Particle {res.particle_id}: {res.final_status}, "
f"moved {dist:.1f} m in {last['time']:.1f} days, {len(recs)} steps")
Expected Outcomes¶
For the tutorial smoke test (no dispersion, 1 realisation per particle):
- Most particles should show
CapturedByWell,CapturedAtModelEdge, orExited. - Pathlines should follow the head gradient and curve toward the three extraction wells.
- If all particles show
MaxStepsorStagnated, see the troubleshooting section below.
For the validation workflow (with dispersion, Monte Carlo repeats):
- Each particle is run many times (100–5000 realisations) with random dispersion.
- The endpoint cloud is binned into a concentration grid and compared against the legacy C++ reference.
- Expected metrics: Pearson correlation > 0.95, normalised RMSE < 0.1, mass error < 1%.
Common Problems¶
| Symptom | Likely Cause | Fix |
|---|---|---|
All particles Stagnated |
Head field is flat or K is too small | Check np.ptp(heads) and K values |
All particles MaxSteps |
max_steps too low or tolerance too tight |
Increase max_steps to 1,000,000+ or loosen tolerance to 1e-5 |
All particles Exited immediately |
Starting coordinates outside grid or wrong cell_id |
Verify particle starts fall inside their assigned cells |
fit_sspa() hangs for hours |
Grid is very large (> 50k cells) | Expected — kriging is O(n²). For 40k cells, ~350 s is normal |
| Pathlines go the wrong direction | direction is -1.0 instead of 1.0 |
Use 1.0 for forward (downgradient) tracking |
| Particles ignore wells | Well drifts missing or well_mask is all-False |
Ensure drifts list includes all wells and well_mask[cell] is True for well cells |
| Validation metrics are poor | Different dispersion settings or too few Monte Carlo repeats | Match the legacy C++ settings exactly; use ≥ 1000 repeats |
For a comprehensive diagnostic guide, see SSP&A Workflow — Diagnosing Silent Failures.
